Characteristics：
· Tight buffer fiber easy of stripping.
· Tight buffer fiber have excellentflame-retardant performance.
· Aramid yarn as strength member making cable have excellent tensile strength.
· The outer jacket material has many advantages such as anti-corrosion, waterproof anti-ultravioletradiation,flame-retardant and harmless to environment etc.
Applications：
· Optical fiber jumper or pigtail
· Indoor riser level and plenum level cable distribution
· Interconnect between instruments, communication equipments
Standards：
Comply with Standard YD/T1258.2,ICEA-596,GR-409,IEC 60794-2-10/11,etc.; and PVC cable meet the requirements of UL approval OFNR and OFNP; Different LSZH jacket meet IEC 60332-1 or IEC 60332-3C or OFNR certification.

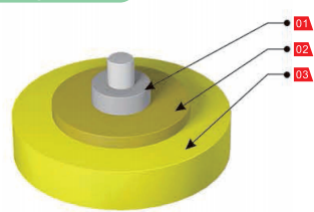

Structure Drawing：
|
|
|
1.Tight Buffer Fiber
2.Aramid Yarn
3. Jacket
|
Technical Parameters：
|
Cable Model
|
Cable Diameter
(Ref)(mm)
|
Cable Weight
(Ref)(kg/km)
|
TBF Diameter
(μm)
|
Tensile Strength
Long/Short Term(N)
|
Crush Resistance
Long/Short Term(N/100mm)
|
Bending Radius
Dynamic/Static(mm)
|
|
PVC Jacket
|
LSZH Jacket
|
|
1.6
|
1.6±0.2
|
2.4
|
2.6
|
600±50
|
40/80
|
100/500
|
60/30
|
|
1.9
|
1.9±0.2
|
3.5
|
4.5
|
900±50
|
60/100
|
100/500
|
60/30
|
|
2.8
|
2.8±0.2
|
6.0
|
7.5
|
900±50
|
60/100
|
100/500
|
60/30
|
