Characteristics：
· Tight buffer fiber easy of stripping
· Tight buffer fiber has excellent flame-retardant performance
· Aramid yarn as strength member making cable have excellent tensile strength
· Figure 8 structure jacket facilitate embranchment
· The outer jacket material has many advantages such as anti-corrosion, waterproof,anti-ultraviolet radiation,flame-retardant and harmless to environment etc
Applications：
· Duplex Optical fiber jumper or pigtail
· Indoor riser level and plenum level cable distribution
· Interconnect between instruments, communication equipments
Standards：
Comply with Standard YD/T1258.2,ICEA-596,GR-409,IEC 60794-2-10/11,etc.; and PVC cable meet the requirements of UL approval OFNR and OFNP; DifferentLSZH jacket meet IEC 60332-1 or IEC 60332-3C or OFNR certification.

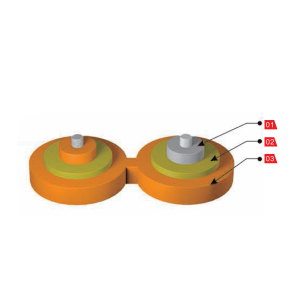

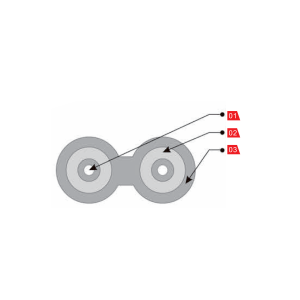

Structure Drawing：
|
|
|
1.Tight Buffer Fiber
2.Aramid Yarn
3.Jacket
|
Technical Parameters：
|
Cable Model
|
Cable Diameter
(Ref)(mm)
|
Cable Weight
(Ref)(kg/km)
|
TBF Diameter
(μm)
|
Tensile Strength
Long/Short Term(N)
|
Crush Resistance
Long/Short Term(N/100mm)
|
Bending Radius
Dynamic/Static(mm)
|
|
PVC Jacket
|
LSZH Jacket
|
|
1.6
|
(3.4±0.3)*(1.6±0.3)
|
4.8
|
5.3
|
600±50
|
40/80
|
100/500
|
60/30
|
|
1.9
|
(4.0±0.3)*(1.9±0.3)
|
8.0
|
8.7
|
900±50
|
60/100
|
100/500
|
60/30
|
|
2.8
|
(5.8±0.3)*(2.8±0.3)
|
11.6
|
14.8
|
900±50
|
60/100
|
100/500
|
60/30
|
