Characteristics：
· Stranded non-metallic strength member structure ensure the cable endure larger tensile strength
·The outer jacket material has many advantages such as anti-corrosion,waterproof,anti-ultraviolet radiation,flame-retardant and harmless to environment etc.
· Aramid yarn as strength member making cable have excellent tensile strength
Applications：
· Indoor any purpose cable distribution
· Backbone distribution cable in a building
Standards：
Comply with Standard YD/T1258.4,ICEA-596,GR-409,IEC 60794-2-2021,etc.;and PVC cable meet the requirements of UL approval OFNR; Different LSZH jacket meet IEC 60332-1 or lEC 60332-3C.

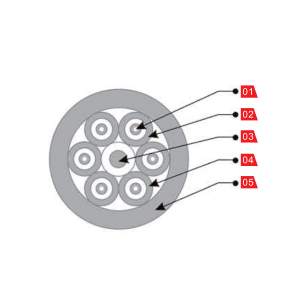

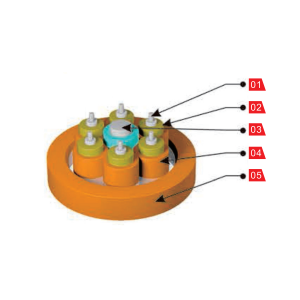

Structure Drawing：
|
|
|
|
1.Tight Buffer Fiber
2.Aramid Yarn
3. FRP Strength Member
4.Subunit Jacket
5. Jacket
|
Technical Parameters：
|
Cable Model
|
Cable Diameter
(Ref)(mm)
|
Cable Weight
(Ref)(kg/km)
|
Tensile Strength
Long/Short Term(N)
|
Crush Resistance
Long/Short Term(N/100mm)
|
Bending Radius
Dynamic/Static(mm)
|
|
PVC Jacket
|
LSZH Jacket
|
|
04
|
7.4±0.5
|
50
|
56
|
130/440
|
300/1000
|
20D/10D
|
|
06
|
8.4±0.5
|
66
|
74
|
200/660
|
300/1000
|
20D/10D
|
|
08
|
9.8±0.5
|
91
|
101
|
200/660
|
300/1000
|
20D/10D
|
|
12
|
12.4±0.5
|
140
|
155
|
200/660
|
300/1000
|
20D/10D
|
24
|
14.4±0.5
|
181
|
201
|
400/1320
|
300/1000
|
20D/10D
|
36
|
16.4±0.5
|
208
|
255
|
400/1320
|
300/1000
|
20D/10D
|
|
48
|
19±0.5
|
280
|
344
|
400/1320
|
300/1000
|
20D/10D
|
