Characteristics：
·Tight bufer fiber easy of stripping
·Tight buffer fiber has excellent flame-retardant performance
· Aramid yarn as strength member making cable have excellent tensile strength
·The outer jacket material has many advantages such as anti-corrosion, waterproof, anti-ultraviolet radiation,flame-retardant and harmless to environment etc.
Applications：
· Indoor any purpose cable distribution
· Backbone distribution cable in a building
· Multi optical fiber jumper
Standards：
comply with Standard YD/T12584,ICEA596,GR-409,IEC 60794-2-20/21,etc.;and PVC cable meet the requirements of UL approval OFNR and OFNP.Different LSZH jacket meet IEC 60332-1 or IEC 60332-3C.

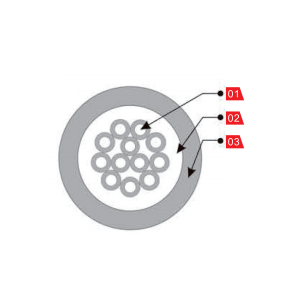

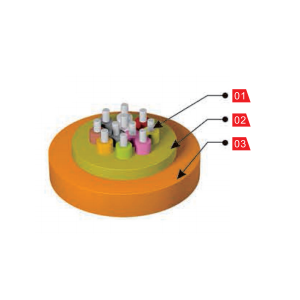

Structure Drawing：
|
|
|
1.Tight Buffer Fiber
2.Aramid Yarn
3. Jacket
|
Technical Parameters：
|
Cable Model
|
Cable Diameter
(Ref)(mm)
|
Cable Weight
(Ref)(kg/km)
|
Tensile Strength
Long/Short Term(N)
|
Crush Resistance
Long/Short Term(N/100mm)
|
Bending Radius
Dynamic/Static(mm)
|
|
PVC Jacket
|
LSZH Jacket
|
|
04
|
4.8±0.3
|
16
|
18
|
130/440
|
300/1000
|
20D/10D
|
|
06
|
5.1±0.3
|
20
|
23
|
130/440
|
300/1000
|
20D/10D
|
|
08
|
5.6±0.3
|
27
|
31
|
130/440
|
300/1000
|
20D/10D
|
|
12
|
6.2±0.3
|
32
|
31
|
130/440
|
300/1000
|
20D/10D
|
24
|
8.1±0.3
|
53
|
57
|
200/660
|
300/1000
|
20D/10D
|
